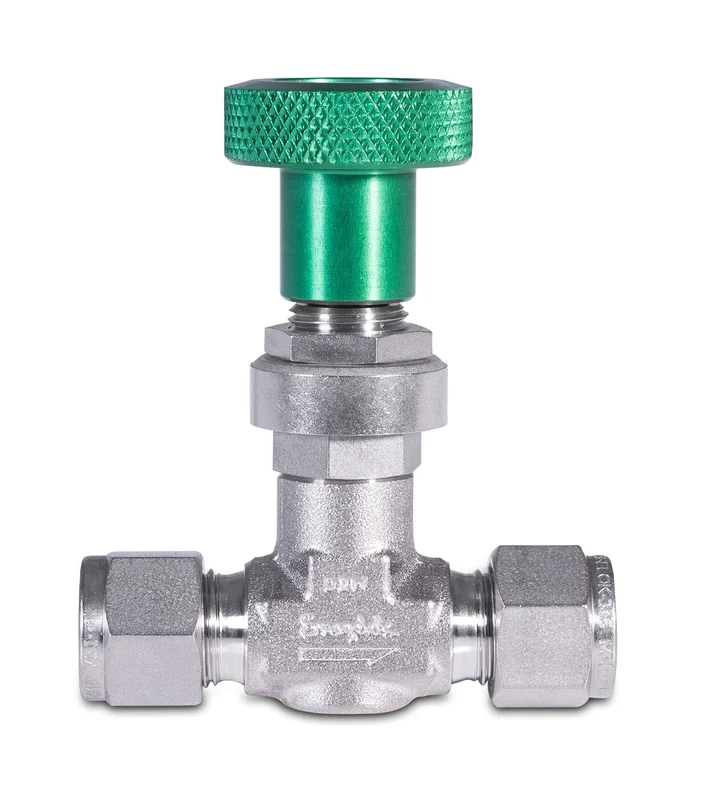

Stainless Steel High Flow Metering Valve – 3/8 in. Swagelok Tube Fitting

Description

Stainless Steel High Flow Metering Valve – 3/8 in. Swagelok Tube Fitting

Overview

Straight Pattern, High-Flow

Make fine adjustments in low- or high- pressure, and low-, medium-, or high- flow applications with Swagelok metering valves that deliver accurate flow control when it matters in situations such as analytical or research applications.

Safe Product Selection The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function, material compatibility, adequate ratings, proper installation, operation, and maintenance are the responsibilities of the system designer and user.
Warning: Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.

 Specifications:

• BODY MATERIAL -316 Stainless Steel
• CONNECTION 1 SIZE – 3/8 in.
• CONNECTION 1 TYPE – Swagelok® Tube Fitting
• CONNECTION 2 SIZE – 3/8 in.
• CONNECTION 2 TYPE – Swagelok® Tube Fitting
• CLEANING PROCESS – Standard Cleaning and Packaging (SC-10)
• MAXIMUM TEMPERATURE °F (°C) – 400 (204)
• MINIMUM TEMPERATURE °F (°C) – -10 (-23)
• CV MAXIMUM – 0.15
• Handle Style – Knurled
