Description

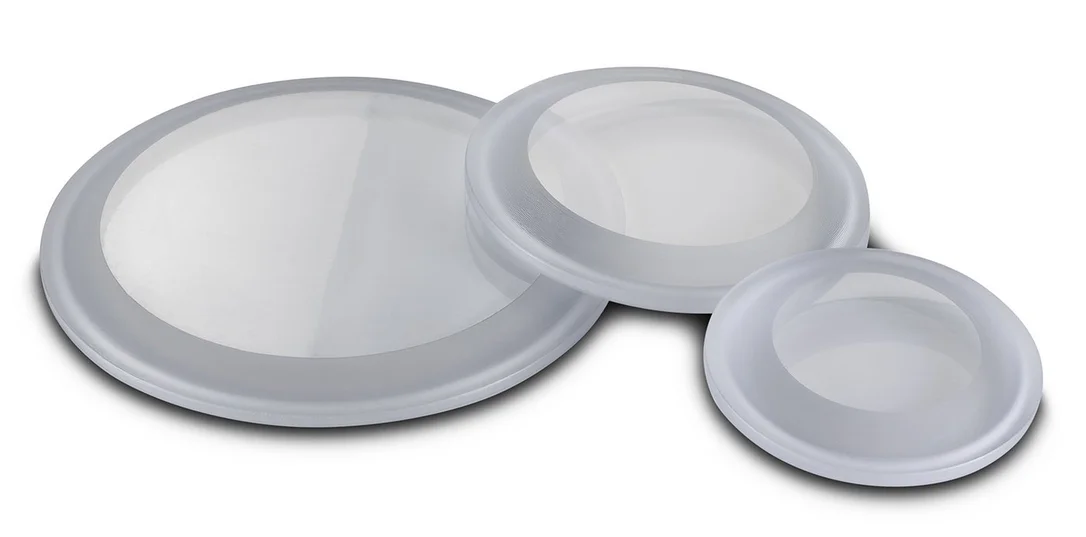

Polycarbonate Tri-Clamp/ Tri Clover Sight Glass
Polycarbonate Tri-Clamp sight glasses are a great and cost effective way to add viewing ports to your system. These sight glasses are 1 piece CNC machined out of 0.25″ thick sheets of polycarbonate and rated up to 250, 225, and 175 PSI for 1.5″, 2″, and 3″ Tri-Clamp sizes. These sight glasses come with a protective film of plastic over the viewing area to protect it from being damaged during shipping and testing the customer will need to remove this upon usage.
***Note: Gasket and Clamp sold separately.
Specifications:
| Material | Polycarbonate |
| Window Diameter: | |
| 1.5″ | 1-1/4″ |
| 2″ | 1-3/4″ |
| 3″ | 2-3/4″ |
| Maximum PSI @70F: | |
| 1.5″ | 250 |
| 2″ | 225 |
| 3″ | 175 |
