PhotonTek LED Driver + Dimming 5M Extension Cable XT
Sale!
2026_06_06_3161114

PhotonTek LED Driver + Dimming 5M Extension Cable XT

Original price was: $86.99.Current price is: $26.09.

SKU: 9114555515122 Category:

Description

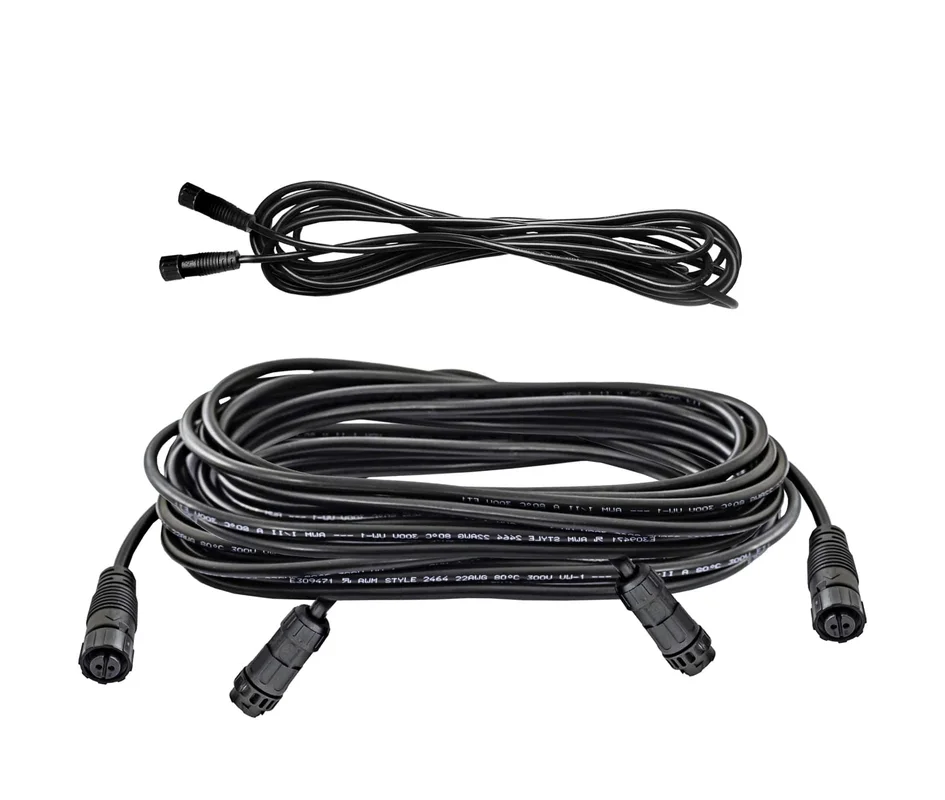

  • These three 5m long Extension Cables are designed to connect the PhotonTek driver and LED fixture, in case the driver is used remote and away of the fixture. Allowing a stable and precise connection without any interference these product is composed by 3 elements:
  • 2 x 5m Extension Power Cables for LED driver: M19-2 Self-locking male and female injection molding with 5m extension cable (Wire Gauge: UL SJTW 2x16AWG 300V 105 degrees Celsius) 1 x 5m Extension Dimming Cable for LED driver: M19-2 Self-locking male and female injection molding with 5m extension cable (Wire Gauge: UL 21996 3x22AWG 300V 105 degrees Celsius VW-1
    • Specifications
  • These three 5m long Extension Cables are designed to connect the PhotonTek driver and LED fixture, in case the driver is used remote and away of the fixture. Allowing a stable and precise connection without any interference these product is composed by 3 elements 2 x 5m Extension Power Cables for LED driver: M19-2 Self-locking male and female injection molding with 5m extension cable (Wire Gauge: UL SJTW 2x16AWG 300V 105 degrees Celsius) Technical/Test Data Withstand voltage between any two poles is 500 VAC, 2mA, test time 3S, no breakdown or leakage current occurs The withstand voltage between outer cover and electrode is 500 VAC, 2mA, test time is 3S, no breakdown or leakage current occurs Insulation Resistance:100M@100V Temperature Resistance:105 degrees Celsius Working temperature: -20 degrees Celsius-105 degrees Celsius Storage temperature: -25 degrees Celsius-105 degrees Celsius IP65 Comply RoHS 1 x 5m Extension Dimming Cable for LED driver: M19-2 Self-locking male and female injection molding with 5m extension cable (Wire Gauge: UL 21996 3x22AWG 300V 105 degrees Celsius VW-1 Technical/Test Data Withstand voltage between any two poles is 500 VAC, 1mA, test time 3S, no breakdown or leakage current occurs The withstand voltage between outer cover and electrode is 500 VAC, 1mA, test time is 3S, no breakdown or leakage current occurs Insulation Resistance:100M@100V Temperature Resistance:105 degrees Celsius Working temperature: -20 degrees Celsius-105 degrees Celsius Storage temperature: -25 degrees Celsius-105 degrees Celsius Comply RoHs
    • Kit Contents
  • 2 x 5m Extension Power Cables for LED driver: M19-2 Self-locking male and female injection molding with 5m extension cable (Wire Gauge: UL SJTW
  • 2x16AWG 300V 105 degrees Celsius)
  • 1 x 5m Extension Dimming Cable for LED driver: M19-2 Self-locking male and female injection molding with 5m extension cable (Wire Gauge: UL 21996 3x22AWG 300V 105 degrees Celsius VW-1
