Description

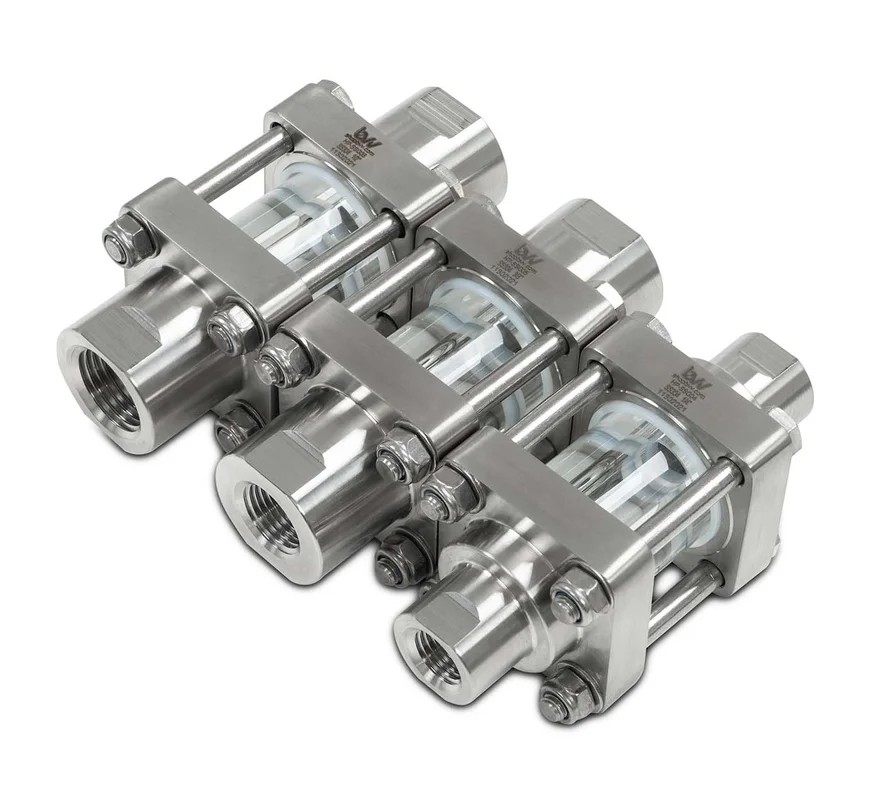

These Stainless Steel inline sight glasses are designed for high pressure applications and come in 1/4″, 3/8″, or 1/2″ FNPT OR Female Compression Connection.
BVV™ PTFE High Pressure Inline Sight Glass – Data Sheet
*Data sheet shows specs for PTFE option only
| Specifications | Female NPT | Female Compression Connection |
|---|---|---|
| Materials: | Stainless Steel / Borosilicate / PTFE Seal or Viton | |
| Sizes Available: | 1/4″, 3/8″, 1/2″ | |
| Dimensions: LxWxH | ||
| 1/4″ | 1.75″ x 1.75″ x 4″ | 1.75″ x 1.75″ x 4.5″ |
| 3/8″ | 1.75″ x 1.75″ x 4″ | 1.75″ x 1.75″ x 4.5″ |
| 1/2″ | 1.75″ x 1.75″ x 4″ | 1.75″ x 1.75″ x 4.75″ |
| PSI Rating | 300 PSI |
