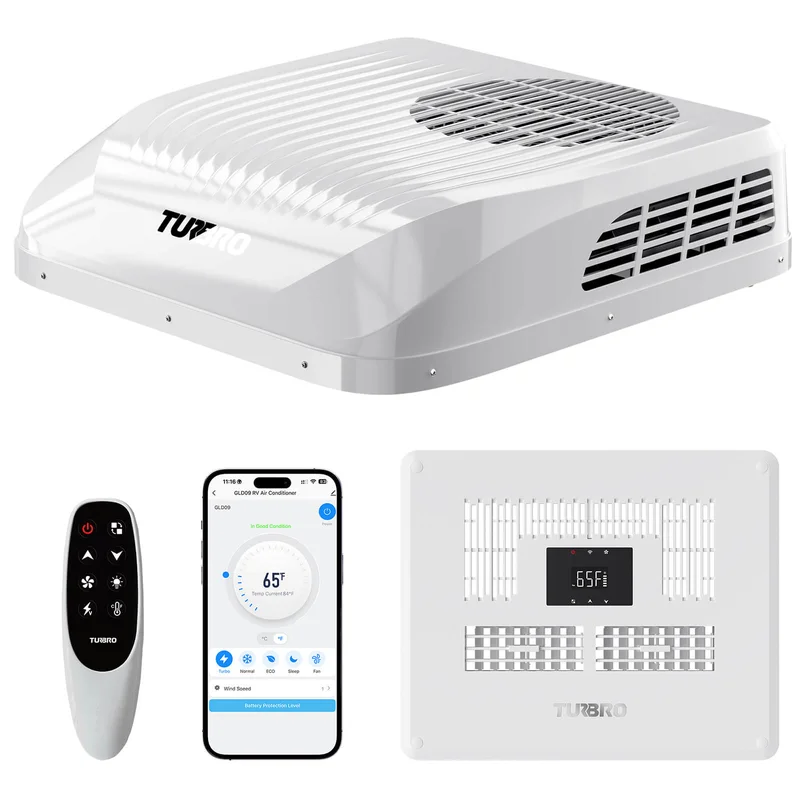

Greenland 9,000 BTU 12V DC Inverter Rooftop RV Air Conditioner (R32)

Description

Features

• Smart Comfort: Enjoy 9,000 BTU cooling via smartphone App, remote, or panel; Turbo LO mode works at full load for rapid cooling; five adjustable fan speeds for a refreshing air; ECO mode for energy savings
• Off-Grid Independence: a 4 AWG UL-certified power cable for direct 12V battery connection enables seamless off-grid living; runs reliably while driving or parked without an external inverter or a soft starter; suitable for Class B RVs, truck campers, pop-ups, mini travel trailers, camper vans
• Efficient Inverter Technology: Twin rotary inverter compressor intelligently adjusts its speed for high efficiency and adapts to different environments; saves 20-40% energy while saving battery life for longer trips; maintains a consistent temperature for comfort
• Low Profile Design: Ultra-slim indoor unit saves space; ultra-low profile rooftop unit is 50% thinner than traditional units to reduce wind resistance; designed to fit 12-14″x14″ openings; lightweight structure allows for easier handling and reduces fuel consumption
• Quiet Sanctuary: Inverter technology combines with a dual vibration-dampening system to reduce operational noise to a minimum 40 dB level; provides a peaceful interior environment for light sleepers, working, or relaxing
• Every set of Greenland 12V RV air conditioners may be shipped in two packages and arrive on different dates; please arrange installation after receiving all the packages.

Specification

• Power Supply: 12 V DC
• Inverter Compressor: Yes
• Cooling: 3,500-9,000 BTU
• Heating: No
• Rated Power of Cooling: 180-600 W
• Rated Current of Cooling: 50 A
• Ambient Temp.: 61-131℉
• Color: White/Black
• Min. Circuit Ampacity: 60 A
• Max. Circuit Protection: 100 A
• Refrigerant: R32
• Rooftop Unit Dimensions: 27.6”(W) x 28.5”(D) x 7.3”(H)
• Rooftop Unit Weight: 46.3 lb
• Indoor Unit Dimensions: 17.3”(W) x 14.0”(D) x 2.5”(H)
• Indoor Unit Weight: 1.8 lb

FAQ

Q: Can I run this AC while driving my RV?

A: Yes. Since it runs directly on 12V DC power, you can keep it running during transit without an inverter, provided your battery system has sufficient capacity and charging support.

Q: How much battery capacity do I need?

A: We recommend a 300 Ah or larger battery bank. With a 480 Ah battery, our energy-efficient inverter system provides approximately 8 to 10 hours of operation. In ECO or Sleep mode, the system intelligently adjusts compressor speed for longer operation.

Q: Will it fit my RV?

A: The Greenland 12V RV AC is designed for versatile fitment such as Class B vans, truck campers, and mini trailers. Model GLD09 needs 12-14″ x 14″ rooftop openings, while GLD12 needs standard 14″ x 14″ openings.

Q: How quiet is the unit?

A: By combining a twin rotary inverter compressor with a dual vibration-dampening structure, this unit operates as quietly as 40 dB in sleep mode for restful nights.

Q: Do I need ductwork?

A: No ducting is required. This is a non-ducted rooftop unit that blows air directly from the indoor unit. This simplified design ensures maximum airflow efficiency and a much easier installation for setups.

Q: Can I run the wiring externally for my truck?

A: Yes, the casing includes pre-drilled ports for external routing. This requires opening the shell to adjust cables. We recommend professional installation or consulting our support for guidance.
