Cascade CVO-5 DOUBLE UP Vacuum Package

Description

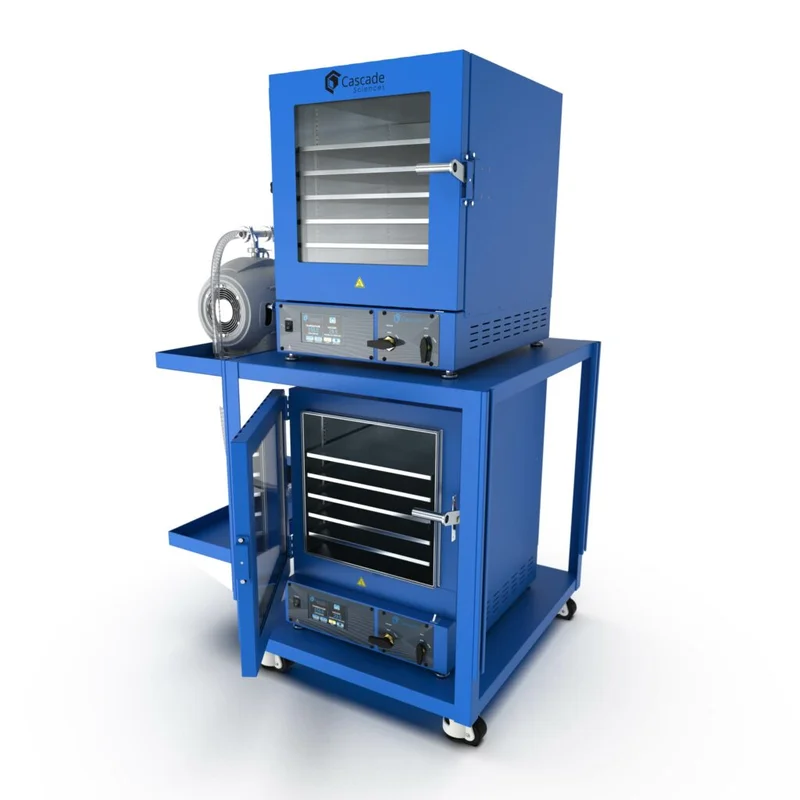

Cascade CVO-5 DOUBLE UP Vacuum Package

Cascade’s CVO-5 DOUBLE UP Vacuum Package is ideal for large volume production with the flexibility of small batch management. The package offers incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries, or any temperature sensitive material.

Typically ships in 3-5 weeks

• 2x Cascade Sciences CVO-5 Vacuum Ovens
• 1x Heavy-Duty Industrial Mobile Cart
• 10x Adjustable, Removable Shelves
• 2x Adjustable Side Shelves
• 2x MAXEVAP Connection Kits
• 1x Agilent IDP15 Oil-Free Vacuum Pump, 9cfm

Model CVO-5

VOLUME:
4.5 Cubic Ft. (127 Cubic Liters)

SHELVING:
Includes 5 removable, adjustable (recommend 8 MAX)
Surface Area: 18″W x 24″D
Weight Capacity: 50 lbs (22.7Kg)
Aluminum

OVEN INTERIOR:
18”W x 24”D x 18”H
457mm x 609mm x 457mm

OVEN EXTERIOR:
33.3” W x 38.6” D x 31.8”H
846mm x 980mm x 808mm

WEIGHT:
360 lbs / 163.3 Kg

TEMPERATURE RANGE:
Operating Range: Ambient +14.4°C to 150°C / +26°F to 302°F

TEMPERATURE UNIFORMITY:
/embed/T2smww0so0w” height=”315″ width=”560″ allowfullscreen=”” allow=”accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture” frameborder=”0″> User Manual
CVO-5 DOUBLEUP Package with MAXTRAP Spec Sheet
